Heavy Duty Warehouse Storage Very Narrow Aisle VNA Pallet Racking

Aisle Pallet Racking: Maximizing Your Storage Density and Efficiency

In today's competitive landscape, optimizing warehouse space is not just an advantage; it's a necessity. Businesses constantly seek ways to store more goods in the same footprint, streamline operations, and reduce costs. This is where Aisle Pallet Racking emerges as a powerful and proven solution, offering significant advantages over conventional selective pallet racking.

What is Aisle Pallet Racking?

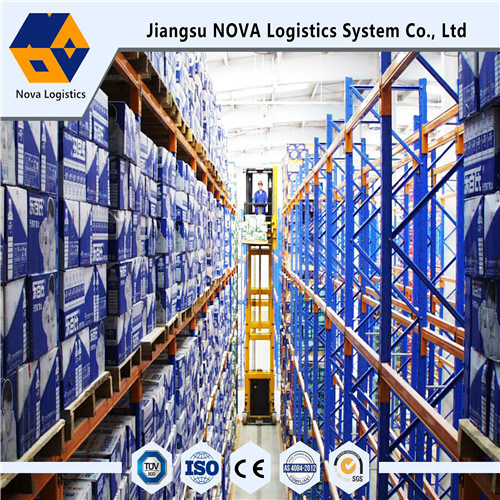

Aisle Pallet Racking, also known as Narrow Aisle Racking or Very Narrow Aisle (VNA) Racking, is a specialized high-density storage system designed to drastically reduce the width of operational aisles within a warehouse. Unlike traditional systems that require wide aisles (typically 3 meters or more) for standard forklifts to maneuver, Aisle Pallet Racking systems operate effectively in aisles as narrow as 1.6 to 2.0 meters. This fundamental difference unlocks immense potential for increased storage capacity.

How Does it Work?

The system achieves its space-saving magic through a combination of specialized equipment and design:

1. Dedicated Forklifts: The key enabler is the use of specialized, narrow-aisle forklifts, often called VNA trucks or turret trucks. These machines are uniquely designed with features like:

• Straddle Legs: Allowing the truck to straddle the base of the racking structure.

• Rotating Forks (on Turret Trucks): Enabling the operator to pick and place pallets perpendicular to the direction of travel without turning the entire truck within the narrow aisle.

• Sophisticated Guidance Systems: Often utilizing wire guidance (following an embedded wire in the floor) or laser/optical guidance systems to ensure precise, straight travel down the narrow aisles, minimizing the risk of collisions.

2. Robust Racking Structure: The racking itself is engineered for stability and high load capacity. It typically features:

• Heavy-Duty Frames: Designed to withstand the forces exerted by the VNA trucks operating in close proximity.

• Precise Alignment: Critical for the guidance systems to function accurately.

• Optional Base Plates or Foot Plates: Often used to provide a secure mounting point for the uprights and enhance stability, especially important in narrow configurations.

• High-Level Design: Structures are usually designed to utilize the full available height of the warehouse.

Key Advantages of Aisle Pallet Racking:

• Significantly Increased Storage Density: By reducing aisle widths, you can fit up to 40-50% more pallet positions within the same warehouse floor area compared to conventional racking. This translates directly into cost savings on real estate or the ability to handle more inventory within an existing facility.

• Improved Space Utilization: Makes optimal use of both floor space and vertical height, maximizing the cube of the warehouse.

• Enhanced Operational Efficiency: VNA trucks can operate faster and more precisely within the dedicated aisles, potentially speeding up put-away and retrieval cycles.

• Direct Access: Similar to selective racking, every pallet position is directly accessible (FIFO or LIFO), providing good stock rotation flexibility.

• Scalability and Flexibility: Systems can be configured to suit specific pallet sizes, weights, and warehouse layouts. Beam levels are adjustable to accommodate changing inventory profiles.

• Safety: While requiring specialized training for operators, the guidance systems and dedicated operating lanes contribute to controlled movement and reduced accident potential within the aisles. The robust racking design also enhances structural safety.

Ideal Applications:

Aisle Pallet Racking is particularly well-suited for warehouses and distribution centers where:

• Available floor space is limited or expensive.

• Storage volume requirements are high.

• Inventory turnover is moderate to high.

• The product range is diverse but manageable.

• Operations require direct access to most pallet locations.

• Budget constraints exist that make fully automated solutions (like AS/RS) less feasible.

Conclusion:

For businesses seeking a practical and highly effective way to dramatically increase their storage capacity without expanding their physical footprint, Aisle Pallet Racking presents an outstanding solution. By leveraging specialized equipment within a robust racking framework, it delivers unparalleled space utilization, improved operational efficiency, and significant cost benefits. It strikes an excellent balance between high-density storage and accessibility, making it a cornerstone technology for modern, space-constrained logistics operations. Investing in Aisle Pallet Racking is an investment in maximizing the potential of your existing warehouse space.

Structural Feature:

Aisle pallet racking is also called Location pallet racking which is of cut-in composite structure; The upright made by continuous punching and rolling;

The frame is assembled by uprights and bracings and beams are fixed to uprights by hooks.

There are safety locks to fix beams and uprights tightly, protecting beams from dropping when loading goods with forklifts.

The height of each layer can be adjusted by 75mm freely, the capacity of each layer can be up to 4000kg. It's convenient to load and unload pallets with goods on by using forklifts; Such forklifts as front-move forklift balance-weight forklift\common forklift and stackers can be used to load and unload goods.

Steel panels, wooden panels and decking are also available for putting on beams instead of pallets.

Pallet racking is the most common storage system which is used in fields of manufacturing industry\the third part logistics\distribution centers\supermarket and so on. Pallet racking is the first choice when building High position warehouses and AS/RS System.

Model: HEAVY DUTY PALLET RACKING


Specification:

Upright: NH1 TYPE (80 TYPE)\NH2A TYPE(90A TYPE)\NH2B TYPE(90B TYPE)\NH3 TYPE(100 TYPE)
NH4 TYPE(120 TYPE)\NH5 TYPE(140 TYPE)
NH6 TYPE(160 TYPE) or customized by clients

Beams are divided into Box beams and Step beams

Sectional sizes of box beams include: Y80,Y100,Y110,Y120,Y140,Y160 ,K180

Sectional sizes of step beams include:P80,PK100*1.8,P100*2.0,P125*1.8,P125*2.0

Pallet support bar: Regular type and cut-in adjustable types

We are professional manufacturer of all types of Racking system since 1997, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.

Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.
