Manufacturing environments destroy standard commercial storage racks. When you load heavy tooling, raw materials, and high-turnover industrial goods onto lightweight frames, structural failure becomes a matter of when, not if. Inadequate racking introduces severe operational risks to your facility. You face workflow bottlenecks, damaged inventory, and serious OSHA compliance liabilities. Manufacturing demands specialized load capacities that far exceed standard warehouse limits.

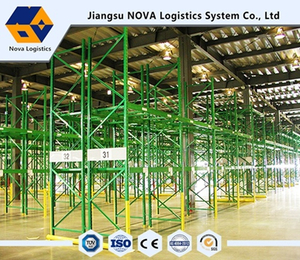

Upgrading to Heavy Duty Pallet Racking reduces hazardous floor clutter, prevents product damage, and directly increases worker productivity. This guide provides a technical framework for operations and procurement leaders to evaluate, specify, and source robust racking systems based on load requirements, spatial constraints, and long-term durability. We will break down the engineering differences that keep heavy manufacturing facilities operating safely and efficiently.
Load Thresholds Dictate Design: Heavy duty applications typically begin at 5,000 pounds per beam level; exceeding this requires specific engineering and material choices.
Material Selection is Critical: The choice between structural steel and roll-formed steel dictates impact resistance, lifespan, and overall safety in high-traffic manufacturing zones.
System Architecture Impacts Throughput: Selecting between selective, drive-in, or dynamic racking systems requires balancing storage density against immediate accessibility (LIFO vs. FIFO).
Hidden Implementation Risks: Proper anchoring, seismic compliance, and professional installation are non-negotiable factors that directly impact the total cost of ownership and facility safety.
Table of Contents
Standard distribution centers handle lighter, uniform pallets. They prioritize fast picking of consumer goods and utilize lightweight storage solutions. Heavy manufacturing environments operate under entirely different physical constraints. They store irregular, dense, and extreme-weight loads. Standard commercial racks buckle under these extreme conditions. Manufacturing requires robust structural integrity to handle constant abuse from heavy machinery and massive payloads.
The operational tempo in a manufacturing plant involves moving raw materials directly to production lines. You need a storage infrastructure that will not warp or collapse under continuous stress. We see standard racks fail constantly when facilities try to repurpose them for heavy industrial use. The uprights twist, the beams deflect, and the entire system becomes a severe safety hazard. Forklift operators in manufacturing plants work quickly with heavy loads, meaning the racking must withstand inevitable bumps and scrapes without compromising the frame.
The technical baseline for heavy duty applications starts high. These systems typically support upwards of 5,000 lbs per pair of beams. Many systems are engineered for much higher capacities, often exceeding 10,000 lbs per level. Beam length, profile depth, and steel gauge interact directly to determine true load capacity. A longer beam inherently reduces overall capacity unless you significantly increase the profile depth. For example, a 96-inch beam might hold 5,000 lbs, but stretching that same profile to 120 inches drops the capacity drastically.
Never rely solely on manufacturer maximum ratings without analyzing your specific application. You must account for uneven load distribution and dynamic forces. Concentrated point loads stress beams differently than evenly distributed pallets. A solid steel die resting in the center of a beam creates massive deflection risks compared to a standard wooden pallet distributing weight evenly across the entire span. We always calculate capacity based on the worst-case point load scenario and adhere strictly to the L/180 deflection limit standard.
Specific manufacturing loads necessitate these reinforced systems. Facilities routinely store materials that destroy standard racking. You cannot place these items on standard 14-gauge teardrop racks and expect them to hold.
Raw steel coils requiring specialized cradles and heavy-duty bracing.
Heavy liquid drums that create shifting dynamic loads during placement.
Massive injection molds requiring extreme point-load support and custom decking.
Automotive parts stored in dense steel bins that grind against standard beams.
Bulk raw materials awaiting processing in high-turnover staging areas.
Static loads involve long-term storage of heavy dies or seasonal tooling. These require sustained structural support without metal fatigue over time. Dynamic loads involve frequent loading and unloading of raw materials. Dynamic applications demand higher impact resistance due to constant, aggressive forklift interaction. When a forklift operator places a 4,000 lb load twenty times a shift, the rack takes a beating. The steel must absorb that kinetic energy without deforming.
Roll-formed steel features a cold-rolled, teardrop design. Manufacturers bend flat steel coils into tubular shapes at room temperature. This creates a lightweight but strong profile for standard warehouse use. However, it has distinct limitations in true heavy-duty manufacturing. Roll-formed steel offers lower impact resistance. It remains highly susceptible to forklift damage. A single strike from a heavy counterbalanced forklift can permanently crease a roll-formed upright, compromising the entire frame.
You should only use heavy-gauge roll-formed racking in narrow use cases. These include lower traffic zones and strictly controlled handling environments. If your facility utilizes automated guided vehicles (AGVs) with precise movement, roll-formed steel might suffice. For manual forklift operations moving heavy steel, it introduces significant risk. We rarely recommend roll-formed systems for primary manufacturing storage unless the loads are strictly uniform and under 3,000 lbs per pallet position.
Structural steel racking utilizes hot-rolled channels and heavy-duty bolted connections. It stands as the default choice for heavy manufacturing. The manufacturing process creates a much thicker, solid steel profile, typically utilizing 3-inch or 4-inch C-channels. This delivers superior impact resistance, higher weight capacities, and exceptional rigidity. Structural racks withstand significant daily abuse on the factory floor.
They can absorb minor forklift impacts without triggering total system failure. You can often repair damaged structural components rather than replacing the entire frame. The bolted connections provide massive shear strength. This prevents the beams from dislodging during accidental upward impacts from forklift forks. When an operator misjudges a lift and clips the bottom of a beam, a bolted structural connection holds fast. A standard teardrop connection might pop out, dropping the load onto the floor.
Choosing between structural and roll-formed steel directly impacts facility longevity. Roll-formed systems degrade faster under heavy use, requiring frequent frame replacements. Structural steel demands a larger upfront material commitment. However, it drastically reduces replacement frequency over the life of the facility.
You experience fewer maintenance interventions and less operational downtime. Calculate your long-term operational durability by analyzing expected forklift traffic and load severity. Structural systems ultimately provide a more resilient foundation for high-turnover manufacturing. We see facilities spend thousands replacing damaged roll-formed frames every quarter. Upgrading to structural steel eliminates that recurring maintenance headache.
Feature | Structural Steel Racking | Roll-Formed Steel Racking |
|---|---|---|
Manufacturing Process | Hot-rolled solid steel channels | Cold-rolled sheet metal formed into tubes |
Connection Type | Heavy-duty bolted connections | Teardrop or slotted pin connections |
Impact Resistance | Extremely high; absorbs heavy forklift strikes | Moderate to low; susceptible to creasing |
Ideal Environment | Heavy manufacturing, harsh industrial zones | Standard distribution, controlled environments |
Maintenance Profile | Low replacement rate; repairable components | Higher replacement rate upon impact |
Selective racking provides 100% selectivity with one-deep storage. Forklifts can access any individual pallet without moving others out of the way. This system perfectly suits manufacturing facilities requiring immediate access to diverse SKUs. It works exceptionally well for varied raw materials, custom dies, and specialized tooling required on short notice. We frequently install heavy-duty wire decking or crossbars on these systems to support non-standard pallet sizes.
The primary trade-off is spatial efficiency. Selective systems offer the lowest storage density per cubic foot. They require numerous aisles to maintain full accessibility. Facilities must dedicate significant floor space to forklift travel paths rather than pure storage. However, for fast-paced manufacturing requiring constant access to different parts, selective racking remains indispensable. We install selective systems in staging areas where rapid material turnover is the top priority.

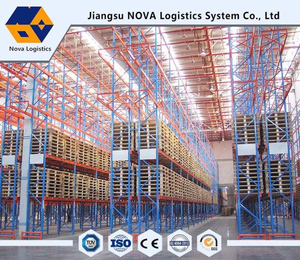

These systems eliminate standard aisles to maximize cubic storage. Forklifts drive directly into the rack structure to place or retrieve pallets. Drive-In systems operate on a Last-In, First-Out (LIFO) basis, utilizing a single entry point. Drive-Thru systems allow First-In, First-Out (FIFO) access by providing entry from both ends. We often install heavy-duty floor guide rails to keep forklifts centered and prevent them from striking the uprights.
They excel at storing high volumes of identical raw materials or finished goods. Because forklifts operate inside the racking bays, constant internal traffic creates significant collision risks. Therefore, you must specify structural steel in these high-density applications. Roll-formed steel simply cannot survive the inevitable internal impacts associated with drive-in configurations. The rails and uprights take constant scraping from pallets and lift trucks.

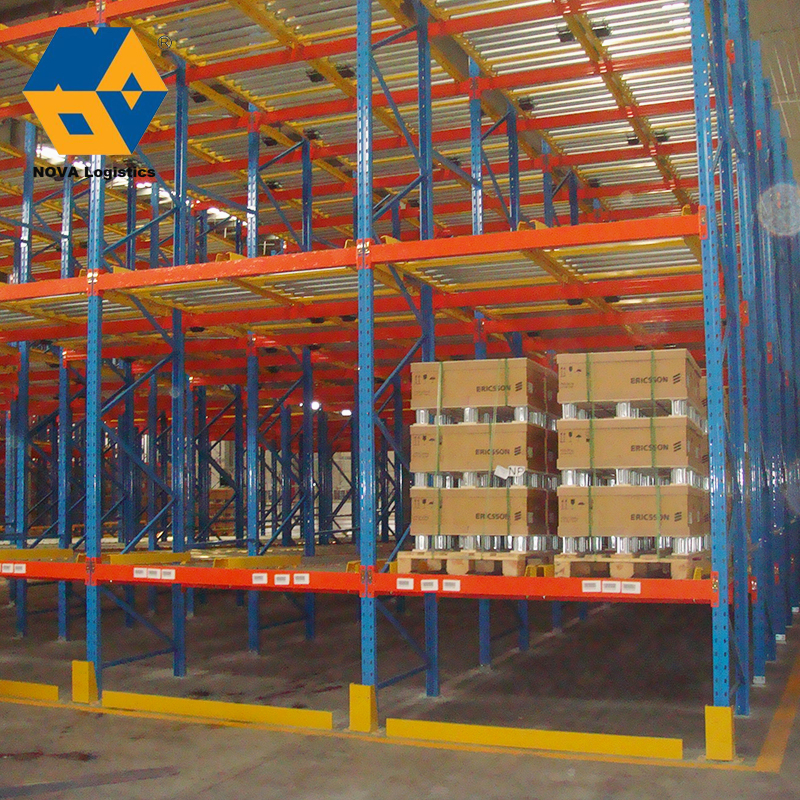

Dynamic storage utilizes gravity-fed mechanisms to move pallets automatically. Push back systems use nested carts on inclined rails, pushing existing pallets back when a new one is loaded. Pallet flow systems rely on heavy-duty rollers to glide pallets from the loading end to the picking end. These setups provide high-density storage while maintaining faster throughput than drive-in configurations.
Engineering dynamic systems for heavy manufacturing loads requires extreme precision. You must calibrate roller capacity and slope angles carefully. Extreme weights can cause pallets to gain dangerous momentum if improperly calibrated, leading to catastrophic end-of-aisle impacts. Heavy duty dynamic systems require robust braking mechanisms to control pallet velocity. We test these slopes extensively with actual loaded pallets before signing off on the installation. You also need strict maintenance protocols to keep debris out of the tracks.
Cantilever systems feature a strong center column with protruding arms. They eliminate front columns entirely. This open-front design accommodates long, bulky manufacturing materials that cannot fit within standard pallet bays. Facilities rely on cantilever racks for steel pipe, bar stock, lumber, and heavy sheet metal. You can choose between straight arms for flat loads or inclined arms to prevent cylindrical items from rolling.
You can adjust arm heights to match specific material dimensions. This flexibility makes it indispensable for raw material receiving areas. Heavy duty cantilever arms can support thousands of pounds each, provided the center column and base are properly anchored and engineered for the specific load distribution. We often install custom end-stops on the arms to secure the loads further. The base of a cantilever rack must match the length of the arms to prevent the entire structure from tipping forward under a heavy load.
System Type | Storage Density | Accessibility | Best Manufacturing Use Case |
|---|---|---|---|
Selective Racking | Low | 100% (Immediate access) | Diverse raw materials, custom dies, varied SKUs |
Drive-In Racking | High | Low (LIFO) | High volumes of identical raw materials |
Push Back Racking | High | Medium (LIFO per lane) | High-density staging with faster throughput needs |
Cantilever Racking | Variable | High for long items | Steel pipe, bar stock, lumber, sheet metal |
Analyze your vertical clear height against available floor space. Heavy duty racking maximizes cubic footage by utilizing vertical air space effectively. This strategy reduces hazardous floor clutter, keeping aisles clear for safe forklift operation. It opens up valuable square footage for active production lines and machinery.
When optimizing vertical space, you must verify structural limits. Pushing systems too high without checking facility constraints leads to severe safety violations.
Ensure the concrete slab can support the concentrated point loads of taller systems.
Account for overhead clearances, including lighting fixtures and HVAC ductwork.
Maintain mandatory fire sprinkler clearances above the top load, typically 18 to 36 inches depending on local codes.
Verify the maximum lift height of your existing forklift fleet to ensure operators can safely reach the top tier.
Aisle width, rack type, and forklift specifications share a critical relationship. Reach trucks, counterbalanced lifts, and very narrow aisle (VNA) lifts require highly specific clearances. Never specify racking without cross-referencing your existing MHE fleet. You must know the exact right-angle stack dimension of your largest forklift.
Verify the turning radius, maximum lift height, and load capacity of your forklifts. Mismatched equipment leads to rack damage and severe safety hazards. If a forklift cannot comfortably turn within an aisle, operators will inevitably strike the upright frames. Ensure the top beam level remains within the safe lifting capacity of your highest-reaching equipment. We see facilities install 24-foot racking only to realize their lifts max out at 20 feet, rendering the top levels useless.
Racking placement directly impacts manufacturing cycle times and ergonomics. Integrating Heavy Duty Pallet Racking near production lines creates efficient point-of-use storage. This reduces travel time for machine operators and keeps essential materials within arm's reach. You eliminate the wasted motion of driving across the plant for a single part.
Conversely, centralized raw material warehousing works better for bulk storage and receiving. Balancing these two approaches increases overall worker productivity. Proper placement ensures materials flow seamlessly into the manufacturing process without causing bottlenecks. Fast-moving materials should reside at ergonomic picking heights to reduce operator fatigue and injury risks. Keep the heaviest, most frequently accessed dies on the lower beam levels to minimize high-reach lifting hazards.
Local seismic zones strictly dictate rack engineering standards. These regulations determine footplate size, steel thickness, and concrete anchoring requirements. High-risk seismic zones require heavier frames, larger base plates, and specialized bracing to prevent collapse during an earthquake. You cannot use standard footplates in a Zone 4 seismic area; the engineering requires oversized plates to distribute the seismic forces.
Older manufacturing facilities often feature inadequate slab thickness. Installing high-capacity racking on thin or degraded concrete introduces massive failure risks. The extreme point loads can punch through weak slabs. Always hire a structural engineer to verify slab capacity before designing a heavy storage system. Proper anchoring requires heavy-duty concrete wedge anchors installed to exact torque specifications. We reject installations if the concrete core samples show insufficient PSI ratings or if the slab is less than 6 inches thick for extreme loads.

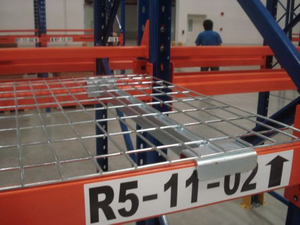

Heavy duty applications require robust safety accessories to survive daily operations. Install heavy steel column protectors and end-of-aisle guards to deflect forklift strikes away from the structural frames. Use heavy-duty wire decking or solid pallet supports to prevent localized pallet failure. Bullnose protectors at the end of every aisle take the brunt of wide turns, saving the main uprights from destruction.
These accessories prevent catastrophic progressive collapse. If a single pallet breaks, wire decking catches the load before it falls to the floor. End-of-aisle guards protect the most vulnerable points in the warehouse layout. Investing in these mitigation tools protects both your inventory and your workforce from falling debris. We mandate column protectors on every upright facing a main travel aisle.
Warehouse racking requires strict permitting and municipal oversight. You must ensure fire code compliance, maintain proper flue spaces, and obtain structural engineering stamps for the specific layout. Installation demands specialized heavy-duty tools and experienced crews. You cannot treat heavy duty rack installation like assembling commercial shelving.
Installers must perform precise plumbing and leveling to ensure the racks stand perfectly vertical. They must validate every anchor step-by-step. DIY or uncertified installation introduces massive liability. It creates unacceptable safety risks in a heavy manufacturing environment. A rack that is slightly out of plumb loses a significant portion of its engineered load capacity. We use laser levels to guarantee every frame sits perfectly straight, utilizing steel shims under the footplates before tightening the anchors.
Expanding a facility requires accurate pallet rack identification. Check existing profiles carefully. Look for teardrop, slotted, or structural bolted designs. Measure the hole pitch exactly. Never mix mismatched brands or profiles in heavy duty applications.
Forcing incompatible components together voids all engineering capacities. It creates weak points that will fail under extreme manufacturing loads. Even if a beam seems to fit into an upright, slight variations in the locking mechanism can lead to catastrophic dislodgement. Always source matching components or replace entire bays to maintain structural integrity. We have seen mixed systems collapse because the safety pins did not align properly, allowing the beam to pop out under a heavy dynamic load.
Substandard racking introduces severe hidden operational penalties. You will face frequent repairs, safety fines, and disruptive replacement labor. Budget carefully for engineering, freight, and professional installation. The steel components represent only one part of a successful implementation. Freight costs for structural steel are significantly higher due to the sheer weight of the material, so factor this into your initial planning.
Investing in highly durable materials ensures continuous operation without disruptive maintenance shutdowns. When a rack fails, you lose the storage space, the inventory on the rack, and the production time required to fix it. Prioritize operational durability over initial material savings to protect your manufacturing output. Buying cheap, thin-gauge steel for a heavy manufacturing plant guarantees failure within the first year.
The secondary market for pallet racks requires an objective and cautious look. Used heavy duty racking carries significant risks for manufacturing environments. You face unknown metal fatigue from previous, undocumented forklift impacts. Missing engineering documentation complicates the permitting process. Inspectors will often reject uncertified used racking outright.
Mismatched components compromise structural integrity. Used racking only presents an acceptable risk under strict criteria. Limit it to certified refurbished units installed in non-seismic zones for lower-tier heavy loads. For extreme manufacturing applications, new racking with certified engineering stamps remains the only responsible choice. We refuse to install used racking if the original manufacturer load tables are missing or if fresh paint hides deep structural rust.
Heavy duty pallet racking represents a critical structural engineering decision. It is never just a commodity purchase. The right system prevents workflow interruptions, protects valuable inventory, and ensures facility safety. Manufacturing environments demand storage solutions that match the intensity of the production floor. By prioritizing structural integrity and proper system architecture, you safeguard your operations against catastrophic failures and costly downtime.
To successfully implement your next storage upgrade, follow these immediate next steps:
Audit your maximum load weights and measure the dimensions of your most irregular manufacturing materials.
Request a structural engineering consultation to verify your concrete slab capacity and local seismic requirements.
Inventory your existing material handling equipment fleet to confirm aisle width and maximum lift height compatibility.
Schedule a comprehensive facility audit with a qualified material handling integrator to map out spatial optimization.
For manufacturers and warehouse operators looking for reliable storage solutions, NOVA specializes in providing professional pallet racking systems designed for industrial storage applications. With expertise in heavy-duty storage solutions, NOVA helps customers optimize warehouse layouts, improve storage efficiency, and develop durable racking systems that meet different load requirements and operational challenges.
A: Capacities scale directly with structural engineering. Heavy duty systems typically range from 5,000 lbs to over 10,000 lbs per beam level. The exact maximum depends on the beam profile, beam length, and the steel gauge of the upright frames.
A: Evaluate your forklift traffic volume and load weight. If you handle extreme weights and experience high-velocity forklift traffic, structural steel is mandatory for impact resistance. Roll-formed racking suits lighter heavy-duty loads in strictly controlled, low-traffic environments.
A: Heavy duty systems require heavy-duty concrete wedge anchors and oversized footplates. The exact specifications depend on the rack height, load capacity, and local seismic engineering codes. A structural engineer must validate the anchoring plan before installation begins.
A: Inspect the punch hole design on the upright frames. Look for common shapes like teardrop, keyhole, or slotted holes. Check for manufacturer stamps or labels on the beams. Accurate identification ensures safe expansion and component compatibility.
A: Industry standards and OSHA guidelines recommend regular visual inspections by warehouse staff on a monthly basis. Additionally, you should schedule a comprehensive professional audit annually to identify hidden damage, missing safety pins, or structural fatigue.
A: You should never mix brands or teardrop styles in heavy duty applications. Combining mismatched components compromises the engineered load ratings. This practice introduces severe structural vulnerabilities and creates massive liability issues if a failure occurs.
A: Standard racking utilizes thinner gauge steel designed for uniform, lighter consumer goods. Heavy duty systems feature thicker steel, deeper beam profiles, and reinforced connections. They are specifically engineered to withstand extreme weights, irregular loads, and harsh manufacturing environments.
