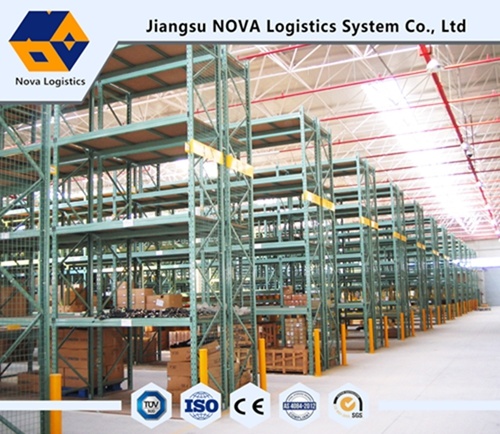

Heavy Duty Standard Customized Pallet Rack From Nova

Selective Pallet Racking: The Foundation of Efficient Warehouse Storage

In the world of warehouse storage and material handling, efficiency, accessibility, and adaptability are paramount. Selective Pallet Racking (SPR) stands as the most widely used and versatile storage system globally, forming the backbone of countless distribution centers, manufacturing facilities, and retail warehouses. Its enduring popularity stems from its straightforward design, exceptional flexibility, and the direct access it provides to every single pallet load.

Core Concept and Structure

At its heart, Selective Pallet Racking is a system designed for storing unitized loads, typically on pallets, that allows operators to directly select and retrieve any individual pallet without having to move others. This "direct access" principle is its defining characteristic.

The system comprises two primary structural components:

1. Upright Frames: These are vertical columns, usually made of robust rolled steel, forming the backbone of the system. They feature punched holes (teardrop or oval shaped) at regular intervals along their height. These frames are bolted to the floor for stability and spaced apart to define the storage bays.

2. Beams: Horizontal load-bearing members that connect to the upright frames via hooks or bolts inserted into the punched holes. These beams create the shelf levels upon which the pallets rest. They come in various depths and capacities to suit different pallet sizes and load weights.

Pallets are placed directly onto these beams, running perpendicular to the aisles. Decking (wire mesh or steel panels) is often added to the beams for safety and to support non-palletized items or smaller boxes.

Key Advantages

• Direct Access: This is the system's biggest strength. Every pallet position is immediately accessible via Material Handling Equipment (MHE), like forklifts or reach trucks. Operators can pick or store any SKU (Stock Keeping Unit) without needing to shuffle other pallets, significantly speeding up order fulfillment and put-away processes.

• Maximum Flexibility: The punched-hole design allows beams to be easily repositioned up and down the upright frames. This means the height between levels can be quickly adjusted to accommodate different pallet heights or to optimize vertical space utilization as inventory profiles change. Adding or removing bays is also relatively straightforward.

• High Density & Space Utilization: While not as dense as drive-in or push-back racking, SPR still offers excellent vertical storage density. By utilizing the full clear height of the building and allowing variable beam levels, warehouses can maximize their cubic storage capacity.

• Inventory Control & Visibility: Direct access facilitates better inventory management. All SKUs are visible and countable, reducing errors and simplifying cycle counting.

• Cost-Effectiveness: Compared to more complex automated or high-density systems, Selective Pallet Racking offers a lower initial investment cost per pallet position. Its simplicity also translates to easier installation and generally lower maintenance requirements.

• Broad Applicability: SPR is suitable for a vast range of industries and products. It handles diverse SKU profiles, supports FIFO (First-In, First-Out), LIFO (Last-In, First-Out), or random access inventory management, and can be configured for various pallet sizes and weights (light, medium, or heavy-duty).

Ideal Applications

Selective Pallet Racking excels in environments where:

• Direct access to every pallet is essential (e.g., warehouses with a high number of SKUs, fast-moving goods, or strict FIFO requirements).

• Inventory turnover is frequent.

• The SKU profile is diverse and subject to change.

• Cost-effectiveness is a primary consideration.

• Building height allows for vertical storage optimization.

Conclusion

Selective Pallet Racking remains the industry standard for a reason. Its blend of direct accessibility, inherent flexibility, cost-efficiency, and straightforward operation makes it an indispensable solution for optimizing warehouse storage. Whether you're managing a small storeroom or a large distribution center, SPR provides a reliable, adaptable, and efficient foundation for your material handling needs. It’s the workhorse system that empowers businesses to streamline operations and maximize their storage potential. For any operation prioritizing quick access and adaptable storage, Selective Pallet Racking is often the ideal starting point. Consult with a reputable racking supplier to design a system tailored precisely to your specific requirements and load capacities.

The height of each layer can be adjusted by 75mm freely, the capacity of each layer can be up to 4000kg. Its convenient to load and unload pallets with goods on by using forklifts; Such forklifts as front-move forklift balance-weight forkliftcommon forklift and stackers can be used to load and unload goods. Steel panels, wooden panels and decking are also available for putting on beams instead of pallets.

Pallet racking is the most common storage system which is used in fields of manufacturing industrythe third part logisticsdistribution centerssupermarket and so on.

Pallet racking is the first choice when building high-position warehouses and AS/RS system.

Racking Details:



Shipping and Package:



Work Place:
