Long Span Racking High Quality Steel Shelving From China

Premium Long Span Steel Shelving for High-Capacity Warehouse Storage Our high-grade Q235B steel racking systems offer bolt-free assembly, modular flexibility, and exceptional load-bearing capacity for optimized warehouse operations. Featuring adjustable shelving heights (50mm increments) and durable powder-coated finishes, these racks provide scalable storage solutions for diverse industrial needs. - Material: High-strength Q235B steel with powder coating finish - Dimensions: Customizable lengths (1000-2700mm), depths (500-1200mm), and heights (2000-5000mm) - Load capacity: 200-800kg per layer with reinforced closed steel panels - Modular design: Tool-free assembly/disassembly with standardized cut-in composite units
Quantity:
Inquire Add to Basket

Product Description

Long Span Racking System Overview

We can supply racks, logistics systems, and multi-layer warehousing systems engineered for heavy-duty industrial environments. The core of this long span shelving lies in its intelligent cut-in composite structure. Utilizing standard cut-in units, both installation and disassembly are simple and quick without using a single bolt. This boltless design not only reduces assembly time but also ensures a rigid, sway-free framework once fully loaded.

Each unit features a very high-strength closed steel panel that feels solid to the touch and delivers a smooth, electrostatic powder-coated finish, effectively preventing rust while resisting daily operational wear. The structural integrity is further reinforced by dedicated safety locking pins and P-shaped closed beams, offering exceptional seismic resistance and absolute stability. For maximum storage flexibility, the height of each layer can be adjusted by pitch 50mm freely, allowing facility managers to accommodate varying cargo dimensions instantly. By implementing this modular system, warehouses can achieve a 100% picking rate and facilitate strict First-In-First-Out (FIFO) inventory management, vastly upgrading overall spatial utilization.

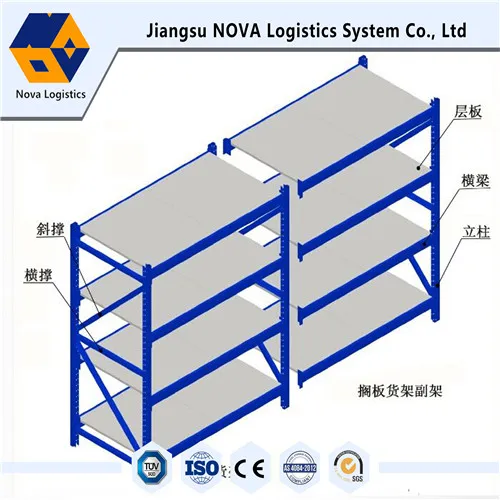

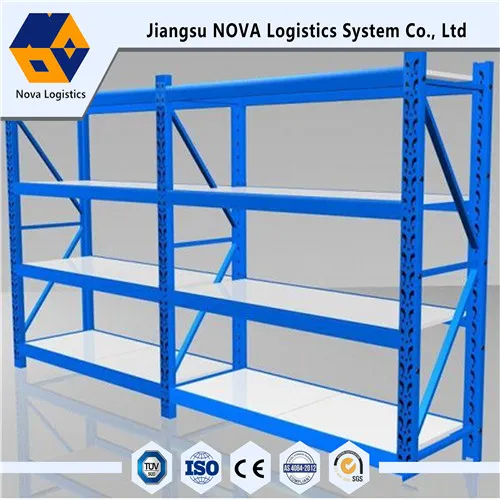

Long span racking system composite structure and boltless design Heavy duty steel shelving panels with electrostatic powder coating
Product name warehouse shelf
Material High grade Q235B Steel
Specification of rack Length:1000mm-2700mm
Depth:500mm-1200mm
Height:2000mm-5000mm
Standard size:L2000*D600*H2000mm,customized size is available
warehouse shelf Loading capacity 200-800KG/Layer
Surface treatment Powder Coating Finishing
Upright specification 50*45*1.0mm 75*60*1.5mm 90*60*1.5mm
Beam Specification 80*45*1.0mm 100*45*1.5mm
layer 2-8 layers(as you want)
warehouse shelf Features High capacity storage, easy installation and adjustment, space saving and goods protection Excellent in quality and beautiful in appearance with high quality steel Utilize the space of warehouse effectively Can be adjusted freely by a pitch of 50mm Prompt delivery and shipment Excellent security warehouse rack 7. Static powder coating
Application Warehouse,store,supermarket,4S shop, garage, widely used
Main Parts 1) Uprights 2) beams 3) Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components
Packing warehouse rack packed by carton or air bubble film

Manufacturer Capabilities & Custom Services

We are professional manufacturer of all types of Racking system since 1997, supply you with quality products at competitive prices. Over the decades, our production facilities have been comprehensively upgraded with fully automated welding robots and continuous electrostatic powder coating lines. This industrial-grade manufacturing process guarantees absolute consistency across large-volume orders and ensures a durable, uniform finish on every steel component.

We would like to be your reliable supplier and trusted friends by offering extensive OEM and ODM services. Our engineering team supports deep customization for non-standard dimensions, specific tier counts, and unique load-bearing requirements. We provide an end-to-end service model, starting from free CAD layout planning and 3D modeling to rapid prototyping. Furthermore, we stand behind our craftsmanship with a solid 1-to-2-year warranty and free replacement of core components if required. Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.
Automated welding robots for warehouse racking production Electrostatic powder coating line for steel shelves

Global Project Cases & Storage Upgrades

Our long span racking systems have been successfully deployed across numerous large-scale logistics centers, automotive 4S shops, and supermarket distribution hubs globally. By integrating these heavy-duty shelves into their daily operations, facility managers have reported a dramatic transformation in inventory accessibility. The strategic layout design allows operators and manual pickers to navigate aisles efficiently, ensuring a seamless flow of goods.

The robust Q235B steel construction easily withstands the constant impact and vibration of busy warehouse environments. Clients frequently highlight the noticeable improvement in space optimization, often doubling their usable storage capacity without expanding their physical footprint. These real-world applications demonstrate how our shelving units maintain their structural integrity and pristine appearance even after years of continuous, heavy-duty loading.
Warehouse long span racking installation project case High capacity steel shelving for logistics center storage

Secure Shipping and Industrial Packaging

Understanding the rigors of international transit, we have developed a meticulous packaging protocol to ensure every component arrives in immaculate condition. Each warehouse rack is systematically packed using heavy-duty cartons, thick air bubble film, and industrial stretch wrap. For maximum stability during ocean freight, the steel panels and uprights are firmly bound with steel straps, preventing any friction or shifting inside the shipping container.

Backed by a massive monthly production capacity, we guarantee exceptionally fast lead times, typically completing large-scale orders within 20 to 25 days. Our logistics coordination team works closely with freight forwarders to optimize container loading plans, maximizing space and reducing transit costs. From our factory floor to your designated facility, we ensure a smooth, damage-free delivery process.

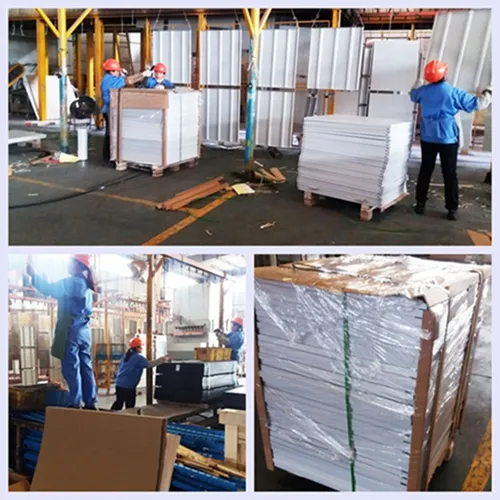

Industrial packaging with steel straps and bubble film for racking Container loading of heavy duty warehouse shelves

International Standards & Certificates

Quality and safety are the foundational pillars of our manufacturing philosophy. Our entire production process strictly adheres to international quality frameworks, ensuring rigorous inspections at every stage—from raw material sourcing to final load testing.

  • ISO9001 Quality Management: Ensuring consistent manufacturing excellence and traceable quality control.
  • CE Compliance: Meeting stringent European safety and operational directives for industrial equipment.
  • AS4084 & FEM Standards: Verified structural integrity and precise load-bearing capabilities for heavy-duty storage applications.

These internationally recognized credentials validate that our shelving units deliver uncompromising safety, making them a compliant and secure choice for global industrial markets.
ISO9001 CE AS4084 certifications for warehouse racking systems Quality assurance and safety standards for steel shelving production
