Product Description
Design and Structure:

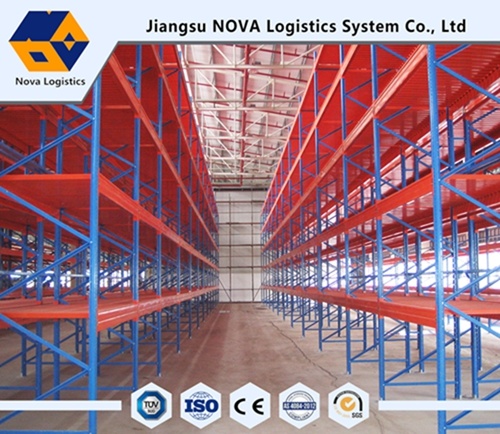

Aisle pallet racking, also known as Location pallet racking, features a cut-in composite design. The uprights are created through continuous punching and rolling processes.
The frame is constructed using uprights and bracings, with beams securely attached to the uprights using hooks. Safety locks are in place to ensure the beams are firmly fixed to the uprights, preventing any accidents when loading goods with forklifts.
Each layer's height can be adjusted by 75mm, with a maximum capacity of 4000kg per layer. Loading and unloading pallets with goods is made easy with the use of forklifts, including front-move forklifts, balance-weight forklifts, common forklifts, and stackers.
Steel panels, wooden panels, and decking can be used on the beams instead of pallets. Aisle pallet racking is a widely used storage system in various industries such as manufacturing, third-party logistics, distribution centers, and supermarkets.
When constructing high-position warehouses and AS/RS systems, pallet racking is often the preferred choice.
| Frame | Height (2-13m) | Depth (600-1,400mm) |
| Upright section: 80x60; 90 x 70; 100 x 65; 120 x87mm | ||
| Thickness: 2.0/2.3/2.5/3.0mm | ||
| Beam | Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm | |
| Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm | ||
| Thickness: 1.4--1.5mm | ||
| Load capacity | 1-4Tons/Layer | |
| Others | Pitch: 75mm,76.2mm - Delivery time: 14-20days - Payment term. T/T or L/C at sight - Necessary accessories: free(bolts & nuts, base plate, etc) - Packing: stretch film & carton - Surface treatment: powder coated, galvanization - Production capacity: 3000T/month - Main market: exported more than 40countries, such as AU, PH, SG, UK, INDIA and etc. - Available in various colors/specifications/sizes | |
We have been producing various types of Racking systems since 1997, offering high-quality products at competitive prices. We aim to establish a long-term partnership with you and become your trusted supplier.
