Steel Warehouse Storage Rack with 10 Years Warranty Time

Structural Features & Manufacturing Process

Engineered for maximum density and uncompromising stability, this heavy-duty storage system is constructed using premium high-strength structural steel. Whether utilizing cold-rolled or hot-rolled steel profiles, every primary load-bearing component undergoes a rigorous, AWS-certified automatic welding process. This meticulous fabrication ensures the structural integrity remains intact even under extreme heavy-duty loading conditions. When inspecting the frames, you will notice the smooth, continuous weld seams that speak to the precision of our manufacturing. The dense, solid feel of the steel profiles instantly conveys the physical durability required for demanding industrial applications.

The core structural and operational characteristics include:

• 1. Drive-in racking is also called corridor-type racking, composite structure, specialized high-intensity drive-in brackets, high-strength drive-in beam, frames are connected to top beams by bolts & nuts.
• 2. The depth of the single side drive-in racking which is against the wall should not be more than 6 pallet locations, and that of double side drive-in should be less than 12 pallet positions so as to ensure the loading efficiency of forklifts and stability of racking.
• 3. It's best to make drive-in lower than H11000mm because of its not so good stability which is the weakest compared with other racking system.
• 4. The drive-in racking should be equipped with back, top cross beams, etc. To stabilize the racks. \
• 5. This type of racking is densely arrayed, making full use of storage space; Both "first in first out" and "first in late out" are available, suitable for storing few types of goods with large quantity.
• 6. Widely used in milk, drink industry, and also be welcome by cold storage.

Safety & Protection Accessories

Operational safety is engineered into every level of this system. We equip these structures with heavy-duty forklift crash guards at the base, providing a physical barrier against accidental impacts during fast-paced loading sequences. The cross beams are secured with high-visibility safety pins that lock into place with a reassuring metallic click, preventing accidental dislodgement from upward forklift strikes. Furthermore, all connections utilize high-strength ASTM-standard fasteners, and we provide clear, highly visible load capacity warning signs to maintain a secure working environment and minimize physical impact risks.

Model & Technical Specifications

Our systems are tailored to accommodate varying weight capacities and spatial constraints. The surface of every component is treated with an industrial-grade, eco-friendly powder coating that provides a smooth, resilient finish to the touch. For environments with high humidity or outdoor exposure, we offer a specialized hot-dip galvanizing option. This robust surface treatment prevents rust and corrosion, making the racking perfectly adaptable for demanding environments like deep-freeze cold storage facilities.

Model: NH heavy duty drive-in racking

Specification:

• Upright: NH1 TYPE (80 TYPE), NH2A TYPE(90A TYPE)
• NH2B TYPE(90BTYPE), NH3 TYPE(100 TYPE)
• NH4 TYPE(120 TYPE), NH5 TYPE(140 TYPE)

The non-standard ones can also be customized by clients to meet highly specific footprint or load-bearing requirements.

Value-Added Services & Commercial Terms

Beyond supplying physical hardware, we deliver comprehensive warehouse engineering solutions. Our process begins with a detailed site survey, followed by precise CAD 3D layout planning. Our engineering team conducts rigorous seismic and load-bearing mechanical calculations to maximize your facility's spatial utilization while adhering to strict safety margins. We also provide end-to-end installation guidance to ensure the system performs exactly as designed.

Important information for quick quotation:

To provide you with an accurate and highly optimized storage solution, our engineering team requires specific operational data. This information allows us to precisely calculate the structural mechanics and load tolerances required for your facility.

1. 1. Racking's D X W X H
2. 2. Loading capacity per level
3. 3. Quantity of levels
4. 4. The size of warehouse

Factory Route & Lifecycle Maintenance

Our office and factory are located in Nanjing, Jiangsu Province, China. Walking through our production floor, you can hear the rhythmic hum of automated welding stations and smell the crisp, clean scent of freshly applied industrial powder coating—a true testament to our active, large-scale manufacturing capabilities.

1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in Nanjing South Railway Station.

Welcome to you.

We are professional manufacturer of all types of Racking system since 1997, supply you with precision-engineered products at competitive prices. We would like to be your reliable supplier and trusted friends. We stand behind our engineering with an industry-leading 10 years warranty time. Our commitment extends far beyond the initial installation, providing professional racking safety inspection guidance and rapid-response replacement services for any damaged components throughout the product's entire lifecycle.

Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window or add my Skype, we all help you out at the earliest.

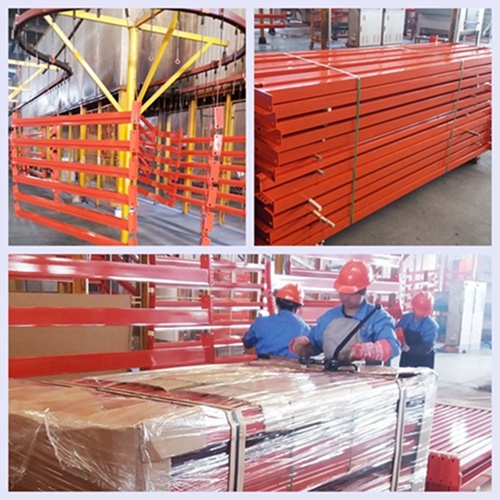

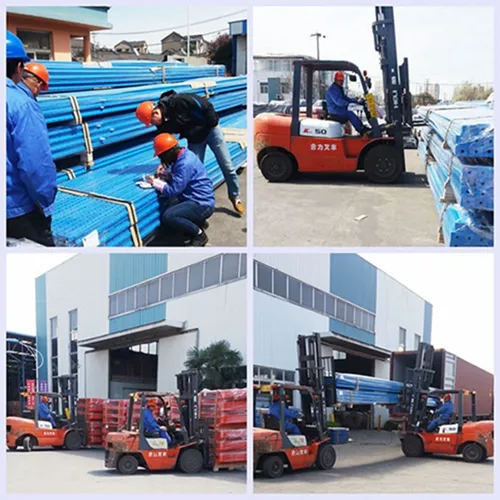

Shipping and Package:

Every structural component is carefully bundled and secured using standard export packaging protocols. The heavy-duty steel beams and uprights are tightly strapped and buffered to prevent metal-on-metal abrasion during long-distance ocean transit. Upon arrival, the neatly stacked bundles facilitate rapid unloading and staging at your installation site, ensuring your project timeline remains on track.

Cooperation Partners:

Over the decades, our commitment to structural safety and spatial optimization has earned the trust of major logistics hubs, food and beverage distributors, and cold storage operators globally. Our carefully engineered systems form the reliable backbone of efficient supply chains across multiple continents, consistently meeting the most rigorous international compliance standards.

Project Case:

From expansive ambient distribution centers to sub-zero cold storage facilities, our drive-in racking systems have been successfully deployed to maximize volumetric capacity. These real-world applications demonstrate our ability to seamlessly integrate high-density storage solutions into complex architectural footprints. Each project highlights our dedication to delivering structural excellence, complete with all necessary safety accessories and lifecycle maintenance support.
