E-commerce logistics has shifted fundamentally from bulk pallet storage to high-velocity, high-mix piece-picking operations. Facility managers face constant tension between SKU proliferation, rising industrial real estate costs, and relentless demands for same-day fulfillment speeds. Relying on legacy or mismatched racking creates severe bottlenecks. It increases labor costs, limits facility lifespan, and severely impacts order fulfillment performance. Physical racking provides the structured, organized framework necessary for Warehouse Management Systems (WMS) to function accurately. Precise barcode location mapping bridges the digital-physical divide, allowing scanners to direct pickers efficiently. Selecting the right infrastructure is not a basic commodity purchase. It represents a strategic decision dictating throughput capacity, material handling equipment (MHE) requirements, and overall operational efficiency. You must evaluate, select, and implement the exact systems required to optimize your fulfillment center.
Density vs. Selectivity Trade-off: The optimal racking system balances maximum storage density with the required accessibility for specific SKU velocities.
Equipment Integration is Non-Negotiable: Racking choices must align strictly with existing or planned Material Handling Equipment (reach trucks, order pickers, automated storage and retrieval systems).
Compliance and Safety Drive Long-Term Costs: Upfront capital expenditure is secondary to long-term costs associated with seismic compliance, fire suppression integration, and proactive rack damage prevention.
Hybrid Systems Rule E-Commerce: High-performing fulfillment centers rarely rely on a single rack type; they utilize engineered pick modules combining pallet flow, carton flow, and selective racking to handle diverse inventory profiles.
Table of Contents
To design an effective storage layout, you must first establish a strict operational baseline. Fulfillment centers operate differently than traditional distribution hubs. You must measure current performance against future growth projections and physical building limitations.
Calculating required pallet positions provides only half the picture. You must also measure required picks per hour. A facility storing 10,000 pallets of slow-moving goods requires vastly different infrastructure than one processing 50,000 piece-picks daily from 2,000 active SKUs. High storage capacity often reduces pick velocity because dense configurations limit simultaneous operator access. Conversely, maximizing throughput requires spreading inventory across multiple pick faces. This reduces overall storage density. You must calculate the exact ratio of reserve storage to forward pick locations based on daily order volumes. If your pickers spend more time traveling between locations than actually picking products, your storage-to-throughput ratio is unbalanced.
Categorizing inventory is mandatory before evaluating physical Warehouse Racking Solutions. Conduct a rigorous ABC analysis based on order frequency, not just total volume. Classify "A" items as your fastest movers generating 80% of daily picks. These require highly accessible, ergonomic pick faces located in the primary strike zone (between waist and shoulder height). Classify "B" items as medium velocity, suitable for standard shelving or secondary aisles. Classify "C" items as slow movers. These belong in high-density reserve storage or upper-level rack positions. Designing a layout without a precise SKU profile leads to severe congestion in high-traffic aisles and forces pickers to travel excessive distances for common items.
Physical building limitations dictate your structural choices. Clear height determines how many vertical levels you can build safely. You must account for the 18-inch to 36-inch clearance required below fire sprinklers. Column spacing dictates aisle widths and rack run lengths. You must map every building column to ensure it falls within a rack flue space rather than blocking an operating aisle. Concrete slab thickness and load-bearing capacity are equally critical. A standard 6-inch slab might support selective racking but will likely fail under the extreme point loads generated by high-density systems or multi-level pick modules. Always verify the concrete pounds per square inch (PSI) rating and soil compaction reports before anchoring heavy steel.
Fulfillment centers require specialized configurations. Understanding the mechanics of each system allows you to match physical storage to inventory behavior and material handling workflows.
Selective racking operates as single-deep storage. It offers 100% accessibility to every stored pallet. Lift trucks can access any load without moving other products. Wire decking is typically added to support non-standard pallets, loose cartons, or split-case boxes. Upright frames and horizontal load beams form the basic structure, connected via teardrop slots or heavy-duty bolts.
For e-commerce applications, it serves as the ideal foundation for highly diverse, low-volume SKUs. Operators frequently use the ground level for piece-picking while utilizing upper levels for reserve pallet storage. This keeps replenishment stock directly above the forward pick face.
The primary limitation is low storage density. Because every row requires an adjacent operating aisle, selective systems consume massive amounts of floor space. They offer the lowest pallet-to-square-foot ratio of any industrial storage system, often utilizing only 40% of the available floor area for actual storage.
Dynamic systems utilize gravity-driven roller lanes pitched at a slight angle. Pallet flow handles bulk replenishment using heavy-duty steel rollers and centrifugal speed controllers. Carton flow manages piece and case picking using staggered polycarbonate skate wheels or full-width aluminum rollers.
These systems are mandatory for high-velocity "A" items. They enable strict FIFO (First-In, First-Out) inventory management. They also separate replenishment aisles from picking aisles. Forklifts load from the back while pickers work safely in the front, eliminating equipment-pedestrian collisions and allowing continuous restocking without interrupting order fulfillment.
Limitations include higher initial capital expenditures. They also require precise pallet and carton quality. Damaged wooden pallets with broken bottom boards or crushed corrugated boxes will jam the roller lanes, halt operations, and require manual intervention to clear the blockage.
Push-back systems use nested steel carts mounted on inclined rails. Forklifts push existing pallets backward to store new ones, creating lanes two to six pallets deep. When a front pallet is removed, gravity rolls the next pallet forward to the aisle face.
This provides high-density storage for medium-velocity SKUs. It works well when you have multiple pallets of the same item that do not require immediate access. It keeps pick faces full without requiring operators to drive into the rack structure.
The main limitation is its LIFO (Last-In, First-Out) rotation. It is incompatible with strict expiration-date tracking. You also cannot mix different SKUs within a single lane without causing severe retrieval delays. Wood splinters or stretch wrap debris on the tracks can also impede cart movement, requiring regular maintenance.
Drive-in systems eliminate standard aisles. Forklifts drive directly into the rack structure to place pallets on continuous horizontal rails. Deep-reach systems use specialized trucks with extending pantograph mechanisms to store pallets two-deep in standard configurations.
These are best for seasonal bulk storage. They work well for staging large quantities of identical SKUs prior to decanting them into smaller bins or forward pick locations. E-commerce facilities often use them for inbound receiving staging.
Drive-in systems carry a high risk of rack damage due to tight forklift clearances inside the bays. Operators frequently strike the uprights while reversing. Deep-reach systems require specific material handling equipment and limit immediate access to the rear pallet, creating a phenomenon known as honeycombing where empty rear slots cannot be utilized until the front slot is cleared.
Cantilever racks feature heavy-duty center columns with horizontal arms extending outward. They lack front-facing vertical obstructions, creating continuous storage levels across the entire length of the row.
This design is essential for fulfillment centers handling oversized, bulky, or oddly shaped items. Furniture, rugs, lumber, steel pipe, and large appliances require uninterrupted horizontal space that standard uprights would block.
The limitation is footprint efficiency. Cantilever systems require specialized side-loader forklifts or wide aisles to maneuver long products safely. They are entirely unsuitable for standard palletized goods and require heavy structural steel bases to prevent tipping.

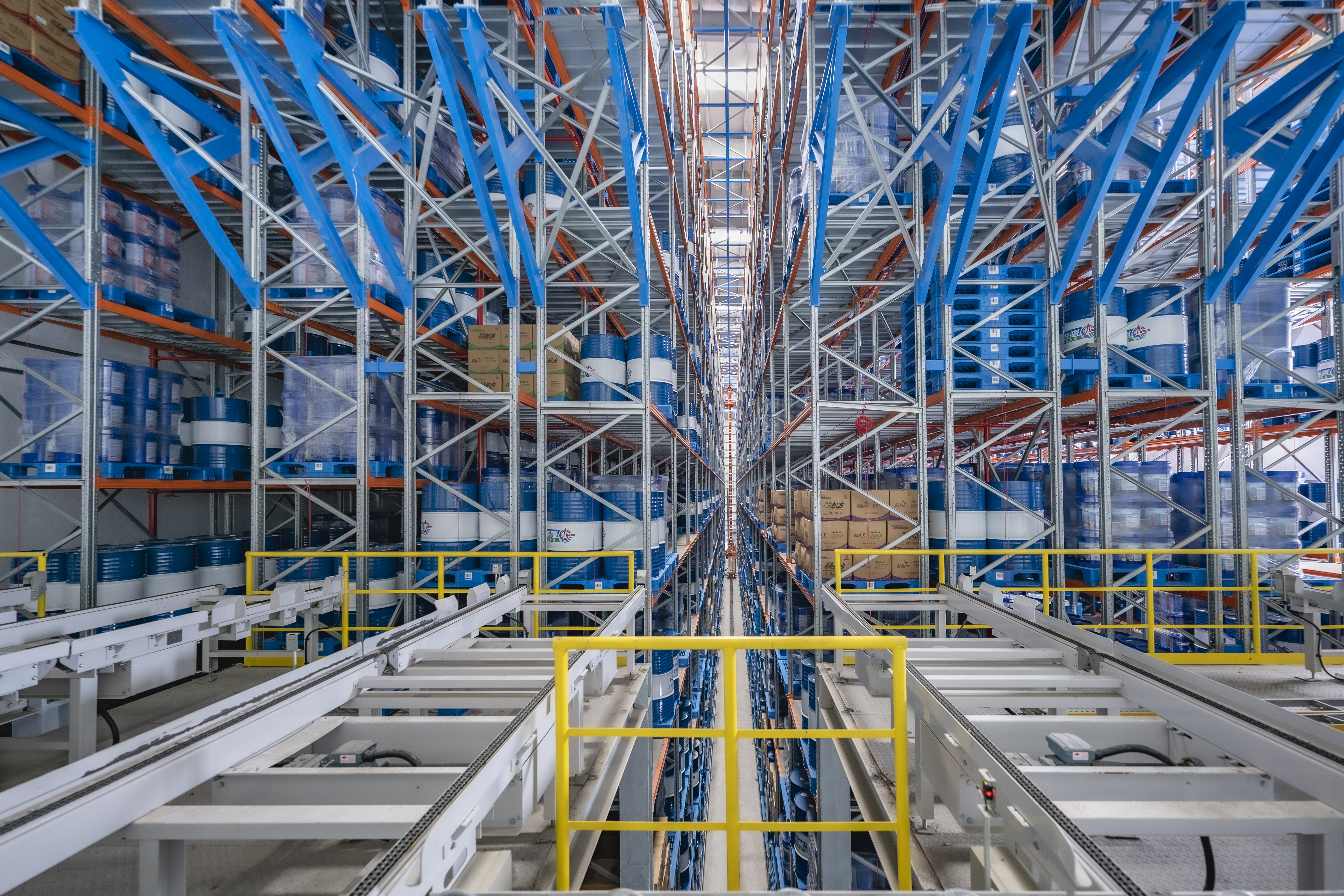

Pick modules are highly engineered, multi-story structures. They combine selective rack, carton flow, and shelving with integrated powered conveyors, gravity spirals, and pedestrian walkways made of bar grating or resin deck.
They represent the gold standard for high-volume piece picking. Pick modules maximize vertical cube utilization by allowing human operators to pick across three or four vertical levels simultaneously. Products move via conveyor directly to packing stations, drastically reducing human travel time and increasing picks per hour.
Selecting the right infrastructure requires analyzing how the physical steel interacts with your daily processes. You must evaluate equipment, software, and inventory traits to ensure the system performs under peak load.
Your inventory type dictates your rotation mechanics. Perishables, cosmetics, and pharmaceuticals demand strict FIFO rotation to prevent spoilage and ensure regulatory compliance. Pallet flow and carton flow systems enforce FIFO naturally by feeding older inventory to the front. Hard goods, apparel, and non-expiring electronics can utilize LIFO systems like push-back racking. LIFO maximizes density when date codes do not matter, allowing you to store more product in a smaller footprint.
Rack designs must match your forklift fleet precisely. You cannot design a layout without knowing the exact right-angle stack dimensions of your trucks. Standard counterbalance forklifts require aisles of 12 to 14 feet to turn safely. Reach trucks operating in Narrow Aisle (NA) configurations need 8 to 10 feet. Turret trucks in Very Narrow Aisle (VNA) setups require only 5 to 7 feet and often use wire guidance systems embedded in the concrete slab.
You must also calculate lift height limitations. Forklift masts experience capacity derating at higher elevations. A truck rated for 4,000 pounds at ground level might only safely lift 2,500 pounds to a 30-foot top beam. Designing racks taller than your equipment's safe lifting capacity creates dead storage space. Furthermore, reach truck outriggers must clear the bottom beam levels, requiring precise elevation planning for the first storage level.
Material Handling Equipment Aisle Requirements | |||
Equipment Type | Aisle Width Required | Max Lift Height (Approx) | Primary Application |
|---|---|---|---|
Sit-Down Counterbalance | 12' - 14' | 20' - 24' | Dock operations, wide-aisle selective rack. |
Stand-Up Reach Truck | 8' - 10' | 30' - 35' | Narrow aisle selective, double-deep rack. |
Order Picker | 4' - 5' (Guided) | 30' | High-level piece picking, non-palletized. |
VNA Turret Truck | 5.5' - 7' | 40'+ | Very narrow aisle, high-density pallet storage. |
Evaluate your space by building up rather than out. Calculate the cost of expanding your building footprint versus installing taller racks. Taller systems require high-reach equipment and heavier steel profiles. Maximizing the vertical cube almost always costs less than acquiring additional industrial real estate. Ensure your lighting and HVAC systems can accommodate higher storage elevations without creating dark zones or blocking airflow. High-bay LED lighting must align perfectly with the aisles, not directly over the rack structures, to provide adequate visibility for operators reading barcodes at 30 feet.
Physical rack configurations must align with your Warehouse Management System logic. Every beam, slot, and bin needs a logical, sequential barcode label. The standard nomenclature follows a Zone-Aisle-Bay-Level-Position format. The WMS uses these locations to calculate efficient pick-path routing. If your physical layout features dead ends or illogical numbering, the WMS cannot optimize picker travel time. Incorporate check digits on rack labels to ensure operators scan the correct location during cycle counts. For high beams, use retro-reflective labels angled downward so operators can scan them from the floor without leaving their equipment.
Facility design requires balancing competing priorities. No single system excels in every metric. You must weigh operational speed against storage density and upfront costs to find the correct equilibrium for your specific fulfillment model.
An inverse relationship exists between storage volume and retrieval speed. Systems maximizing density bury pallets behind one another. This increases the time required to access a specific SKU. Systems offering 100% accessibility sacrifice floor space to operating aisles. You must balance these factors based on your required pick velocities. Fast movers need accessibility. Slow movers need density. Implementing a 100% selective rack warehouse for a low-SKU, high-volume operation wastes massive amounts of space, while using drive-in rack for a high-SKU e-commerce operation destroys picking efficiency.
Selective racking offers the lowest upfront material cost. However, it requires more floor space and increases picker travel time. Dynamic systems like pallet flow or automated pick modules require significant initial capital. Yet, they drastically reduce labor hours and footprint requirements. Over a five-year horizon, the labor savings from a well-designed pick module easily justify the higher initial investment. Walking accounts for up to 60% of a picker's time; investing in gravity flow systems that bring the product to the picker yields massive operational dividends.
E-commerce SKU profiles change rapidly. Your racking must adapt. Teardrop roll-formed racking allows for quick beam elevation adjustments without specialized tools. You simply knock the beam out of the slot and move it. Bolted structural steel systems handle forklift impacts better but require significant labor and impact wrenches to reconfigure. Evaluate how easily a system can be torn down, relocated, or expanded before committing to a permanent layout. If your business model involves frequent seasonal inventory shifts, prioritize highly adjustable roll-formed systems for your forward pick areas.
Installing heavy industrial equipment introduces significant operational and safety risks. Proactive planning prevents catastrophic failures, regulatory fines, and facility downtime.
Never operate with undocumented load capacities. Overloaded beams will deflect beyond the acceptable L/180 limit (length divided by 180) and eventually collapse. Understand the difference between steel types. Roll-formed steel is manufactured by cold-rolling flat steel into a tubular shape. It works well for standard weight loads. Structural steel uses heavy hot-rolled C-channel components. It is mandatory for high-impact environments, heavy loads, and facilities operating multiple shifts where equipment abuse is common. Always install heavy-duty beam ties to prevent beams from spreading under heavy pallet loads.
Investing in safety accessories protects structural integrity. Forklift impacts are inevitable. Install heavy-duty steel v-nose column protectors on every upright facing an aisle. Use end-of-aisle guards to shield rack rows from turning vehicles. Install safety netting or wire mesh panels on the back of racks facing pedestrian walkways to prevent falling inventory. Pallet support bars prevent compromised wooden pallets from breaking through the beams. A single collapsed upright can bring down an entire row of racking in a domino effect; spending money on protection is non-negotiable.
Local building codes dictate specific seismic engineering requirements. You cannot simply order steel and assemble it. Facilities in active seismic zones require larger base plates, thicker steel gauges, and specialized concrete anchoring systems like heavy-duty wedge anchors or epoxy anchors. A licensed structural engineer must stamp the design to secure municipal permits. Ignoring seismic compliance leads to failed inspections, project delays, and severe legal liability. The engineer will evaluate the soil type, the concrete slab thickness, and the specific rack configuration to determine the necessary seismic bracing.
High-density and multi-level solutions heavily impact facility fire safety. Storing plastics or cardboard tightly often blocks overhead Early Suppression Fast Response (ESFR) sprinklers from penetrating the lower levels. You must maintain strict longitudinal and transverse flue spaces (typically 6 inches) to allow water to drop. Local fire marshals frequently require in-rack fire sprinkler systems for multi-level pick modules, solid-decked racks, or deep-lane storage. Installing in-rack plumbing significantly impacts both installation timelines and overall project budgets. You must coordinate the rack installation with the fire protection contractor to avoid rework.
Retrofitting an active fulfillment center requires meticulous scheduling. You cannot shut down operations to install new steel. Outline a phased installation plan. Clear one zone, dismantle old racks, install the new system, and transfer inventory before moving to the next zone. This mitigates operational downtime but requires strict coordination between the installation crew and warehouse management. Erect physical safety barricades and dust containment curtains to separate the active construction site from the operational picking aisles.
Procuring industrial storage is a complex construction project. The vendor you choose determines the success of the implementation and the safety of your facility.
Buying raw materials directly from a manufacturer leaves you responsible for design, freight, unloading, and labor. Working with a systems integrator provides significantly more value. Integrators design hybrid solutions tailored to your data. They source the best components from multiple manufacturers to build the exact system you need. They also manage the entire installation process, ensuring the final structure matches the engineered drawings exactly and passes all municipal inspections.
Select a vendor that provides comprehensive project management. The right partner handles local municipality permitting and seismic calculations. They coordinate directly with fire marshals, concrete inspectors, and electrical contractors. This allows your internal team to focus on maintaining daily fulfillment operations rather than managing a complex construction site. A strong partner will also provide as-built drawings and load capacity plaques upon project completion.
There is no single perfect rack for every scenario. Optimal e-commerce fulfillment relies entirely on a hybrid approach tailored to specific SKU velocities and facility constraints. Prioritize selective systems for high-mix, low-volume goods. Utilize carton and pallet flow for high-velocity FIFO items. Deploy cantilever systems for non-conveyables, and build multi-level pick modules to maximize vertical piece-picking throughput. Warehouse Racking Solutions must be engineered to support your specific operational goals.
For businesses seeking reliable and customized storage solutions, NOVA provides professional warehouse racking solutions with expertise in system design, manufacturing, and project support. With a focus on practical warehouse requirements, safety standards, and operational efficiency, NOVA helps customers develop storage systems that improve space utilization and support long-term logistics performance.
To move forward effectively, execute the following steps:
Commission a professional facility audit to measure exact clear heights, column spacing, and concrete slab capacities.
Execute a comprehensive SKU profiling analysis to categorize your inventory by pick velocity and physical dimensions.
Engage a structural engineer to assess local seismic requirements and fire code compliance before finalizing any layout.
Develop a phased implementation schedule to ensure continuous fulfillment operations during the installation process.
Issue a detailed Request for Proposal (RFP) to turnkey systems integrators rather than direct material manufacturers.
A: Roll-formed racking is manufactured by cold-rolling flat steel into a tubular shape, making it cost-effective and easy to adjust via teardrop connections. Structural racking is made from hot-rolled C-channel steel. It is significantly heavier, bolted together, and designed to withstand severe forklift impacts in high-traffic, heavy-load environments.
A: Load capacity depends on the maximum weight of your heaviest pallet, the vertical spacing between beams, and the structural rating of the upright frames. Larger vertical gaps between beams reduce the overall capacity of the upright. Always consult a structural engineer to calculate exact load ratings based on your specific configuration.
A: Aisle width is dictated entirely by your material handling equipment. Standard sit-down counterbalance forklifts require 12 to 14 feet. Narrow Aisle (NA) reach trucks operate in 8 to 10-foot aisles. Very Narrow Aisle (VNA) turret trucks or articulated forklifts can operate in aisles as narrow as 5.5 to 7 feet.
A: Pallet flow utilizes gravity rollers to move pallets from a rear loading aisle to a front picking aisle, enforcing strict First-In, First-Out (FIFO) rotation. Push-back racking uses nested carts on inclined rails where pallets are loaded and retrieved from the same front aisle, resulting in Last-In, First-Out (LIFO) rotation.
A: Seismic requirements vary strictly by geographic location and local building codes. In high-seismic zones, racking systems require thicker steel gauges, larger base plates, heavier concrete anchors, and specialized bracing. A licensed structural engineer must evaluate the site soil, concrete slab, and rack design to ensure compliance.
A: Essential safety accessories include heavy-duty steel column protectors to prevent forklift damage, end-of-aisle guards for high-traffic corners, and pallet support bars to prevent heavy loads from falling between beams. Additionally, safety netting or wire mesh panels are critical on rack backs facing pedestrian walkways.
