Product Description
Specifications
1. Racking

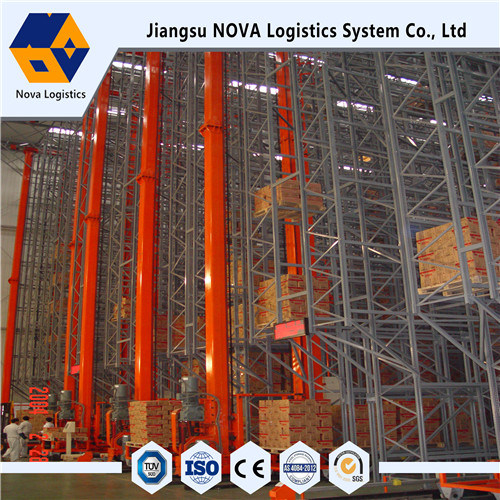

Structural feature: AS/RS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity. Conveyors will do the loading and unloading job under the instruction from the central computer. AS/RS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.
Model: NH heavy duty pallet racking
Specification:
2. Stacker
Structural feature: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system; all the way tracing technology by information transferring; electric components are imported from abroad; touching screen interface for easy operation; making manual, semiautomatic, automatic andlinkage control come true; used in many situations by combining with other logistics equipment.
| Model | Loading Capacity (kg) | Height | Walking Speed | Remark |
| DPL-0.1T | 100 | 5-30m | 160m/min | Customized based on client's requirements |
| DPL-0.5T | 500 | 160m/min | ||
| DPL-1T | 1000 | 160m/min | ||
| DPL-2T | 2000 | 120m/min | ||
| DPL-3T | 3000 | 100m/min |
3 .Conveying system
Structural feature: Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts, rotating devices and other equipments.
Specification:
4. Controlling system
Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by SIEMENS S7-300 controller can operate all conveyors offline, doing conveying of goods automatically.
Please refer to the attached drawing for details of conveying system
5. WMS System
Hardwares of WMS System: star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods.
Softwares of WMS System:
Operating system: WINDOW 2000X SEVER
Data-base: MS SQL SEVER 2000X
Warehouse management software: WMS
Equipment controlling software: ECS
Bar code management software: RFS
AFQ:
| 1. What makes you different with others? | ||||
| 1) Our Excellent Service | ||||
| For a quick, no hassle quote just send email to us | ||||
| We promise to reply with a price within 24 hours - sometimes even within the hour. | ||||
| If you need an advice, just call our export office at 0086-25-51873961, we will answer your questions immediately. | ||||
| 2)Our quick manufacturing time | ||||
| For Normal orders, we will promise to produce within 15 days. | ||||
| As a manufactory, we can essure the delivery time according to the formal contract. | ||||
| 3)Our Special Export Design | ||||
| We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film. | ||||
| 4)Our Warranty Time | ||||
| The High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for your normal use, it is the Longest Manufacturer's Warranty ! | ||||
| 2. What is delivery times? | ||||
| This depends on the product. Typically standard products are delivered within 20 days. | ||||
| The delivery time of the special products is according to the time of setting up of the tooling. | ||||
| 3.What is the term of payment? | ||||
| 1) T/T payment. 2) LC | ||||
| 4. May I know the status of my order? | ||||
| Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time. | ||||
| 5. Are samples available? | ||||
| Yes, we can send some sections of samples for your reference by express. |
We are professional manufacturer of all types of Racking system since 1997, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.
Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.
