What Is Multi Deep Shuttle ASRS and How Does It Work

Multi deep shuttle asrs is a type of automated storage and retrieval system. It uses shuttle units to move goods in and out of racks. This system stores pallets in many rows inside the same rack. This helps use space better and lets you store more items. Automation in warehouses helps track inventory better. It also lowers labor costs. Nova Intelligent is a leader in this field. They make new solutions that help businesses use space well and work better.

Key Takeaways

• Multi Deep Shuttle ASRS uses shuttle units to move pallets deep inside racks. This helps use storage space better and makes things work faster.

• This system lowers labor costs a lot by using machines to store and get items. Fewer workers are needed to do more jobs.

• Better inventory management helps track goods correctly. This keeps items fresh and meets quality rules.

• The smart design lets you store more pallets in less space. This saves energy and money.

• Safety features like sensors and emergency stop zones keep workers safe. These features help stop accidents in the warehouse.

• The modular design of Multi Deep Shuttle ASRS makes it easy to add more parts. This helps businesses grow their systems as they get bigger.

• Automation makes orders more accurate and faster. This makes customers happier and trust the company more.

• Companies can get their money back in less than a year. This makes Multi Deep Shuttle ASRS a good choice for modern warehouses.

Multi Deep Shuttle ASRS Overview

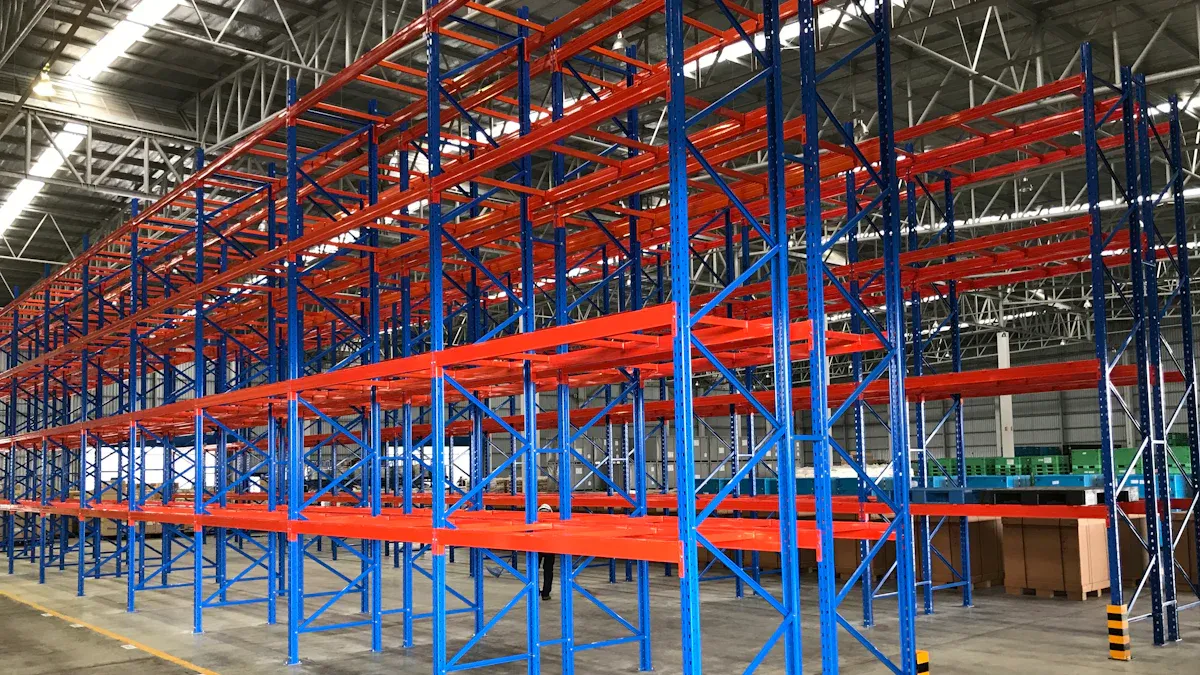

Image Source: unsplash

Core Concept

Multi deep shuttle asrs is a new way to store goods. It uses shuttle units that move pallets inside racks. The shuttles can go deep into the racks, not just the front. This lets you store pallets in many rows. The system helps use space in a smart way. It also helps move lots of pallets fast.

The innovative multi-pro shuttle system is very important here. It lets warehouses keep more items in the same space. Pallet shuttle systems work by themselves, so workers do not go inside racks. This makes accidents less likely and keeps people safe. Many companies pick advanced asrs solutions to make storage and retrieval better.

Key Terms

Here are some key words to know about multi deep shuttle asrs and pallet shuttle systems:

• Shuttle Unit: A small cart with a motor that moves pallets in racks.

• Multi-deep configurations: A way to put pallets in many rows inside a rack.

• Rack: The metal frame that holds pallets.

• Pallet Shuttle Systems: Automated systems that use shuttles to move pallets.

• AS/RS: Stands for automated storage and retrieval systems. These use machines to store and pick items.

• Innovative multi-pro shuttle system: A special shuttle system that can handle many pallets and work in deep racks.

• Space Optimization: Using warehouse space in the best way.

Tip: Knowing these words helps you see how advanced asrs solutions work and why they matter in warehouses today.

Difference from Traditional AS/RS

Traditional as/rs use cranes or stackers to move pallets. These systems usually store pallets in just one or two rows. This means racks cannot hold as much. Multi deep shuttle asrs uses pallet shuttle systems that reach many rows deep. This lets you use multi-deep configurations and fit more pallets in the same space.

The innovative multi-pro shuttle system is also faster than old systems. Shuttles can move at the same time in different aisles. This makes storage and retrieval quicker. Advanced asrs solutions help companies save space and work better. Pallet shuttle systems also mean workers do not need to go into storage areas, so the warehouse is safer.

Multi deep shuttle asrs is a big change for warehouse automation. It uses space better, works faster, and keeps workers safe.

How Multi Deep Shuttle ASRS Works

Shuttle Movement

Multi deep shuttle asrs uses shuttle units to move pallets inside racks. These shuttles ride on rails and go deep into storage lanes. Navigation technology helps each shuttle move exactly where it needs to go. This makes the system fast and able to handle lots of pallets. Shuttles can move in different directions, so they reach any pallet quickly.

Loading Process

Loading starts when a pallet gets to the entry point. The shuttle picks up the pallet and takes it into the rack. It can go forward, backward, and change levels with a lifter. This helps use vertical space better. The Four Way Shuttle with Lifter lets the system store more inventory in the same area. This is good for warehouses with little floor space.

• Shuttles can reach storage spots from many directions

• Aisles can be narrower, saving space

• Storage density and capacity go up

• Shuttles move alone, so orders get filled faster

The shuttle puts the pallet in the right place. Then it goes back to get another load. This keeps the system fast and efficient.

Retrieval Process

Getting pallets out works almost the same way. The system tells the shuttle where to go. The shuttle moves to the right spot and lifts the pallet. It brings the pallet to the front of the rack or to a conveyor. Workers do not need to go inside racks, so the warehouse is safer.

Multi deep shuttle asrs can cut cycle times by up to 50%. This means orders are filled faster and more accurately.

Note: Shuttles that move in many directions and lifts help increase storage density by over 30%.

System Controls

The control system is the brain of multi deep shuttle asrs. It manages shuttle movement, tracks inventory, and keeps things running well. The system uses Warehouse Control Systems (WCS) and Programmable Logic Controllers (PLC) for reliable operation.

Software Integration

Software integration is very important for the system. Traffic management software helps shuttles and lifts work together without delays. Control interfaces make sure storage and retrieval are done right, so inventory stays accurate. The software is modular, so the system can grow as storage needs change. WiFi keeps shuttles and lifts connected for safe and smooth operation.

Hardware and software work together so the system can handle more orders and new challenges.

Safety Features

Safety matters a lot in automated warehouses. Multi deep shuttle asrs has many safety features to protect workers and goods.

• Extra safety systems like light curtains and floor mats

• Emergency stop zones for quick response

• Automatic handling keeps loads safe and reduces accidents

The system handles goods by itself, so workers stay out of dangerous areas. This lowers the risk of injury and keeps things running smoothly.

Tip: Safety features and control systems help stop accidents and keep the warehouse safe.

Main Components

Shuttle Units

Shuttle units are the moving parts in a multi deep shuttle ASRS. These units travel on rails inside racks. They carry pallets to and from storage spots. Each shuttle works fast and is very accurate. The design makes fixing them easy. If one shuttle breaks, you can swap it out. The rest of the system keeps working.

The table below shows important technical features of shuttle units:

Shuttle units help the pallet shuttle system move goods fast and safely. They also use less energy than older machines.

Racking Structure

The racking structure holds all the pallets in place. It is made of strong metal frames. These racks can be much deeper than regular racks. The design lets you use FIFO or LIFO methods. This means warehouses can pick the best way to manage goods.

Here is a comparison between multi deep shuttle ASRS racks and regular racks:

• Multi deep shuttle racks let you use FIFO and LIFO.

• Regular racks usually only use one method.

The racking structure works with the pallet shuttle to save space and give more storage choices.

Conveyors & Lifts

Conveyors and lifts move pallets between different levels and areas. Conveyors carry goods along set paths. Lifts raise or lower pallets to the right height. These machines help the pallet shuttle system work faster and smoother.

The table below explains their role in the system:

Conveyors and lifts make sure goods move quickly from place to place. They help the warehouse handle more orders each day.

Tip: When all these parts work together, the warehouse gets safer, faster, and more efficient.

Control Systems

Control systems are like the brains of a multi deep shuttle ASRS. They help all parts of the warehouse work together. These systems use special software to control shuttles, lifts, and conveyors. Their main job is to keep things running safely and smoothly.

A control system often has a Warehouse Control System (WCS). Sometimes it also uses a Warehouse Execution System (WES). These systems talk to each other and to machines. This helps the warehouse work faster and make fewer mistakes.

Key Functions of Control Systems:

• Control shuttle movement and storage jobs.

• Watch all equipment as it works.

• Find errors fast and send alerts.

• Work with warehouse management software.

• Make the flow of goods better.

The WCS acts like a traffic manager. It tells shuttles where to go and when to move. It keeps track of every pallet in the system. If something goes wrong, the control system finds it quickly. This stops delays and keeps goods safe.

Tip: Real-time monitoring means the system always knows where pallets are. This helps workers find items faster and lowers lost inventory.

Control systems help machines work together. Shuttles, forklifts, and conveyor belts must move goods at the right time. The control system makes sure they do not bump into each other. This teamwork makes warehouse operations faster.

Here is a table showing how control systems help warehouses:

Control systems help with planning too. They look at data from the whole warehouse. They suggest better ways to store or move goods. This makes the warehouse more flexible and ready for changes.

• WCS and WES control all machines and subsystems.

• They keep everything working together and make smart choices.

• They help the warehouse handle more orders with less effort.

A strong control system is very important for any automated warehouse. It keeps everything connected, safe, and efficient.

Features & Benefits

Automation & Speed

Automation is a main part of multi deep shuttle ASRS. The system uses smart technology to move goods fast and correctly. This means companies do not need as many workers. It also helps them finish jobs quicker. Automated shuttles can work all day and night. Warehouses can fill more orders every day. The system makes fewer mistakes, so customers are happier.

• Companies can cut labor by over 30% because workers walk less and do more important things.

• Scan-driven workflows help make every pick correct.

• Businesses can add more robots and stations as they get bigger, without stopping work.

Nova Intelligent is a leader in automation. They use new technology and listen to what customers want. The company has won awards for new ideas and always tries to make products better.

Space Optimization

Multi deep shuttle ASRS helps companies use all their warehouse space. The system lets you store pallets deep in racks. This means more goods fit in the same area. Using space well saves money and makes storage better. Warehouses can keep more items without building new places.

Multi deep shuttle ASRS makes storage denser by using deep lanes and letting shuttles work on many levels. This uses vertical space and lets warehouses be smaller but hold more. The system is modular, so it fits any warehouse shape or size.

• You get the most storage for big production and shipping needs.

• The system works fast and is easy to use.

• Modular design fits different warehouse layouts.

• You can change the system to fit your needs.

• Safety systems keep workers safe on all floors.

Nova Intelligent makes solutions that help warehouses use space better. The company has over 70 patents and follows strict rules for quality. This makes sure every system works well.

Scalability

Scalability matters for businesses that want to grow. Multi deep shuttle ASRS can get bigger as you need more space. You can add shuttles, racks, or lifts without changing everything. This helps companies handle more orders as they grow.

1. Scalability is important for future growth.

2. Systems made for growth can boost output by 30%.

3. Planning ahead saves money later.

• Flexible design helps companies grow in the future.

• Adaptable systems make it easy to add shuttles and storage.

Nova Intelligent builds systems that can grow with your business. They work with customers to make sure each system fits their needs. This focus on new ideas and happy customers makes Nova Intelligent special.

Safety & Reliability

Safety and reliability matter a lot in every warehouse. Multi Deep Shuttle ASRS systems help keep workers and goods safe. These systems use smart technology to lower risks and stop accidents. Nova Intelligent makes each system with strong safety features.

Warehouses have many moving machines and heavy pallets. This can be dangerous if not handled well. Multi Deep Shuttle ASRS uses automatic controls to keep people away from danger. Sensors watch for trouble and can stop the system fast. Emergency stop buttons are easy to find. Light curtains and safety mats give extra protection.

Here are some important safety features in Nova Intelligent’s systems:

• Sensors that see people or things in the shuttle’s way

• Emergency stop zones for quick help

• Automatic alarms for errors or jams

• Safety fences and barriers around moving parts

• Regular checks and alerts for maintenance

Reliability means the system works well every day. Nova Intelligent uses strong materials and follows strict rules like ISO9001 and ISO14001. Their systems pass many tests before being used. This helps stop breakdowns and keeps the warehouse working well.

The table below shows how Nova Intelligent’s safety and reliability features compare to traditional systems:

Nova Intelligent has over 70 patents for smart warehouse technology. Their systems are used in more than 140 countries. Many big companies trust Nova Intelligent because their solutions are safe and reliable.

Tip: A safe and reliable system keeps workers and goods protected. It also saves money by stopping accidents and downtime.

Using a safe and reliable system has many benefits. Warehouses can work faster and have fewer problems. Workers feel safer, and goods stay in good shape. Nova Intelligent’s focus on safety and reliability helps customers reach their goals and trust their systems.

Nova Intelligent Solutions & Industry Cases

Automotive Projects

Nova Intelligent helps many car companies with storage. These companies need strong racks for big, heavy parts. Nova Intelligent builds and sets up these racks for them. In Oman, Toyota used Nova Intelligent’s system for car parts. The system made storing and moving parts much easier. Workers could find parts fast and keep things neat. Nova Intelligent planned the space, built racks, and set up controls. They also taught workers how to use the new system. This made Toyota’s warehouse safer and cut down on mistakes.

Other car makers use Nova Intelligent’s systems too. GE and SIEMENS have finished projects with them. Each project shows how smart warehouse systems help in different ways. Nova Intelligent’s planning and setup make each job work well.

E-Commerce Solutions

E-commerce companies must move goods very quickly. Nova Intelligent builds big mezzanine systems for these warehouses. In Guangzhou, JD used their system to handle many orders every hour. Shuttles and conveyors move packages fast in the warehouse. Workers walk less and pick orders more quickly.

The table below shows how Nova Intelligent’s e-commerce systems help:

Nova Intelligent plans each project for what the customer needs. They put in racks and set up the software. Their team keeps the system working well with support. These systems help e-commerce companies fill orders faster and save money. High accuracy means fewer returns and happier buyers.

Papermaking & Chemical Industry

Warehouses for paper and chemicals have special needs. They must store big paper rolls or heavy drums. Nova Intelligent makes custom systems for these jobs. Nine Dragons Paper in Chongqing uses their automatic system for paper rolls. The system moves and stores rolls safely. It uses stacker cranes and conveyors for heavy loads.

In the chemical field, Nova Intelligent’s systems help with dangerous items. They use smart controls to track every item. Safety features protect workers and goods from harm. Nova Intelligent’s team works with each customer to find the best plan. These examples show smart warehouse systems can solve hard problems in many industries.

Nova Intelligent’s work in many fields shows how useful smart warehouse systems are. Their focus on planning, design, setup, and support helps customers reach their goals.

Global Reach

Nova Intelligent is a top company in smart logistics. They are known for building advanced warehouse systems around the world. Many businesses trust Nova Intelligent to make storage and retrieval better. Nova Intelligent has finished projects in over 140 countries. Their systems help companies in places like the United States and China. This shows they can meet many needs and follow different rules.

• Nova Intelligent has put ASRS systems in North America, Asia, Europe, Africa, and Australia.

• Their solutions help industries like automotive, e-commerce, papermaking, and chemicals.

• The company works with big brands such as GE, SIEMENS, WALMART, AMAZON, and TOYOTA.

Nova Intelligent changes its systems to fit local needs. Each project starts with careful planning. The team designs and puts in racks and shuttle systems for each warehouse. Nova Intelligent gives training and support after setup. This helps customers use the system well and keep it working.

Nova Intelligent’s global reach means their systems work in many places. Their technology can handle cold storage, heavy loads, and fast-moving goods.

The company follows strict quality rules. Nova Intelligent meets certifications like ISO9001 and ISO14001. These rules make sure every system is safe and reliable. Customers in many countries get good products and expert help.

Nova Intelligent’s experience helps them fix many warehouse problems. Their team knows what each market needs. They offer solutions that make storage, speed, and safety better. The company’s global reach shows they care about new ideas and happy customers.

Nova Intelligent’s projects around the world show how ASRS systems can change warehouses. Their focus on planning, design, setup, and support helps customers get better results.

Nova Intelligent keeps growing in new places. The company works with new partners and industries every year. Their global reach makes them a trusted name in smart logistics.

Comparing AS/RS Technologies

Single vs. Multi Deep Shuttle ASRS

Warehouses use different kinds of as/rs. They store and move goods. Single deep and multi deep shuttle asrs are common options. Each type has its own strengths. The biggest differences are storage density and retrieval speed.

The table below shows these systems compared:

Single deep systems work well for fast-moving items. They help shuttles reach pallets quickly. Multi deep shuttle asrs hold more goods types. They use the same space well. This system fits warehouses with many products. It also helps when space is tight.

Shuttle vs. Crane-Based AS/RS

Shuttle-based as/rs and crane-based as/rs are used today. Shuttle systems use small vehicles on rails. They move inside racks. These shuttles can travel deep into racks. They are fast and flexible. Crane-based systems use tall machines in aisles. Cranes move up and down. They reach high shelves. They handle heavy loads.

Shuttle-based as/rs fit high throughput and flexible layouts. They use space well. They can work in narrow aisles. Cranes are better for very tall warehouses. They also fit heavy goods. Both systems cut labor and improve safety. The best choice depends on warehouse needs.

Tip: Shuttle systems are often easier to expand. You can add more shuttles as your business grows.

Suitability for Different Needs

Choosing the right as/rs depends on many things. Every warehouse has its own needs. Here are key steps to help decide:

1. Analyze your inventory characteristics. Check goods types, movement rates, and special storage needs.

2. Define throughput and performance requirements. Know item volume and when busy times happen.

3. Evaluate warehouse space and layout constraints. Check height, floor strength, and current setup.

4. Set budget and calculate ROI. Think about equipment, software, setup, and future maintenance costs.

5. Choose the right as/rs technology type. Match the system to daily work and long-term goals.

Multi deep shuttle asrs is a strong option. It helps companies use space well. It also handles many goods types. Crane-based systems are better for very tall storage. They also fit heavy-duty storage. Each as/rs has a special role. They help warehouses work better.

Is Multi Deep Shuttle ASRS Right for You?

Key Considerations

Picking the best automated storage and retrieval system is very important. Multi deep shuttle asrs works well in busy warehouses. It is great for places with lots of items and quick picking. This system helps if you do not have much space. It lets you store more goods in the same area. It is also good if your warehouse changes SKUs often or has fewer workers.

Here are some things to think about:

1. Operational needs: Think about how your warehouse runs. Do you need fast picking or special tools?

2. Software integration: Check if the as/rs can work with your warehouse software.

3. Facility layout: Look at your building’s size and shape. The system must fit and work well in your space.

4. System strength: Busy warehouses need strong systems. Light-duty systems may break and cause problems.

Tip: Multi deep shuttle asrs is best for companies that want to use space well and keep track of inventory.

ROI & Cost

Cost and return on investment are very important. Many companies get their money back quickly. The system saves money by needing fewer workers. It also stores more goods and picks orders faster. Most companies see results in less than a year. Some see benefits in just three months.

Here is a table with starting costs for different as/rs types:

Multi deep shuttle asrs helps save money by using less labor. It also uses space better and keeps track of goods. This lowers mistakes and keeps items fresh.

Implementation Factors

Good planning is needed for as/rs to work well. Pallets should all be the same size and strong. This stops jams and keeps things moving. The racks and rails must match your warehouse’s needs. Software must help you see inventory in real time and keep things running smoothly.

Some industries, like food and beverage, need special cleaning. The system must be easy to clean and safe for food. The design should fit your space and work with columns and aisles.

• Pallet specifications: All pallets should be the same size and quality.

• Rack and rail layouts: Should fit your warehouse’s needs.

• System software: Must help you see inventory right away.

• Cleaning requirements: Needed for food and drink warehouses.

Note: Good planning and smart choices help your as/rs work well. This keeps your warehouse safe and running smoothly.

Multi deep shuttle asrs is a smart way for warehouses to store and move goods fast. The system uses shuttles to save space and keep workers safe. Nova Intelligent builds these systems with strong safety and good quality. People should think about what their warehouse needs before picking a system. You can visit Nova Intelligent’s website for more help or details.

FAQ

What is a multi deep shuttle ASRS?

A multi deep shuttle ASRS is an automated storage system. It uses shuttle carts to move pallets deep inside racks. This system lets warehouses keep more items in less space.

How does a shuttle unit work?

A shuttle unit moves on rails inside the rack. It picks up pallets and puts them in storage spots. The shuttle listens to commands from the control system.

What types of goods can it store?

Multi deep shuttle ASRS can hold many kinds of goods. It works with pallets, boxes, and containers. Many industries use it, like automotive, e-commerce, and chemicals.

Is the system safe for workers?

Yes, the system has lots of safety features. Sensors, alarms, and barriers help keep workers safe. Automation keeps people away from moving machines.

Can the system grow with my business?

Yes, the system is modular. You can add more shuttles, racks, or lifts as your business gets bigger. This helps you handle more orders as you grow.

How does it improve warehouse efficiency?

The system moves goods fast and accurately. It cuts down on manual work and makes order picking quicker. This helps warehouses fill more orders each day.

What support does Nova Intelligent provide?

Nova Intelligent helps with planning, design, installation, and maintenance. The team trains workers and gives support when needed. Customers get help at every step.

Where can I learn more or get a quote?

Go to Nova Intelligent’s website for more information. You can also contact their team for a custom solution or a quote.
